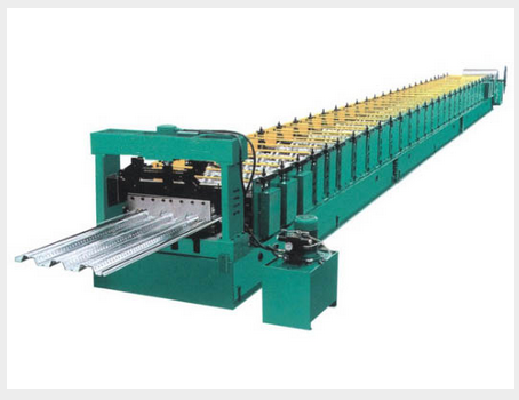

Equipment length: 10.5m, width: 1.5m, height: 1.2m

Version width: effective width 1025, width: 1.25 meters, peak height: 50, peak distance: 342

Deceleration mechanism: planetary reducer.

Transmission: 2 inch chain drive

Weight of equipment: not less than 13.5T, 450 steel frame

Shaft diameter: material of 100 shaft solid shaft material, 45# steel quenched and tempered HB220-2506319 bearing hole of 95,

Number of wheel road: 20 road

Materials and treatment: the pressing wheel is g CR 15 bearing steel car quenching, hardness 55 degrees, polishing, plating hard chromium 0.05mm, the shaft and hole with no looseness, version of the front side of the pits. Thickness of wall plate 18mm.

Host power: 15KW/6 pole 380V and frequency converter.

Control system: Taiwan Delta PLC CNC system control panel, touch screen, size 1mm

Hydraulic power: 7.5KW

Cut off way: hydraulic power cut off 7.5KW, 125 of the oil cylinder two, blade Cr12 quenching, Rc62, no fly edge.

Pressure plate thickness: 0.8~1.5mm

Auxiliary equipment: put rack 1

Pressure plate speed: 8~12 M / min
